Variations – Door Furniture
|
|
|

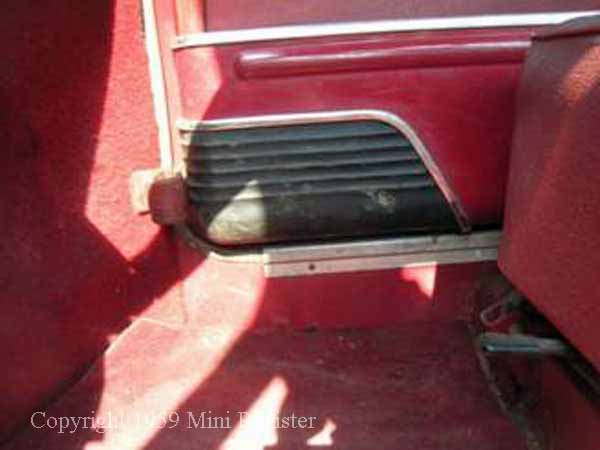

| Morris de-luxe had black plastic kick plates on the doors. Basic models in most countries did without kick plates. |
Austin de-luxe had metal kick plates. Basic models in most countries did without kick plates. |
|
|
|

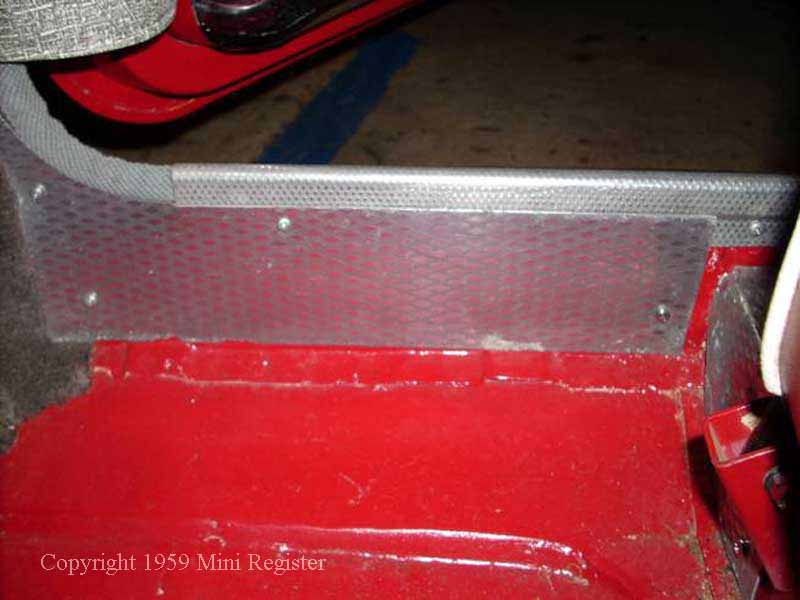

| Austin de-luxe have alloy plates on the inner sill at the front. Morris cars are carpeted in this area. |

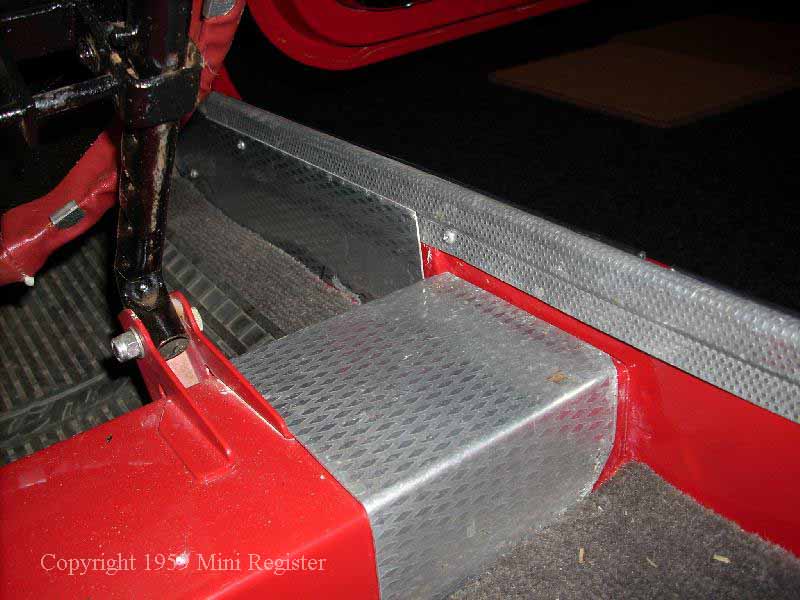

Austin cars have an alloy plate over the end of the cross member, Morris cars are left body colour. |
|
|
|

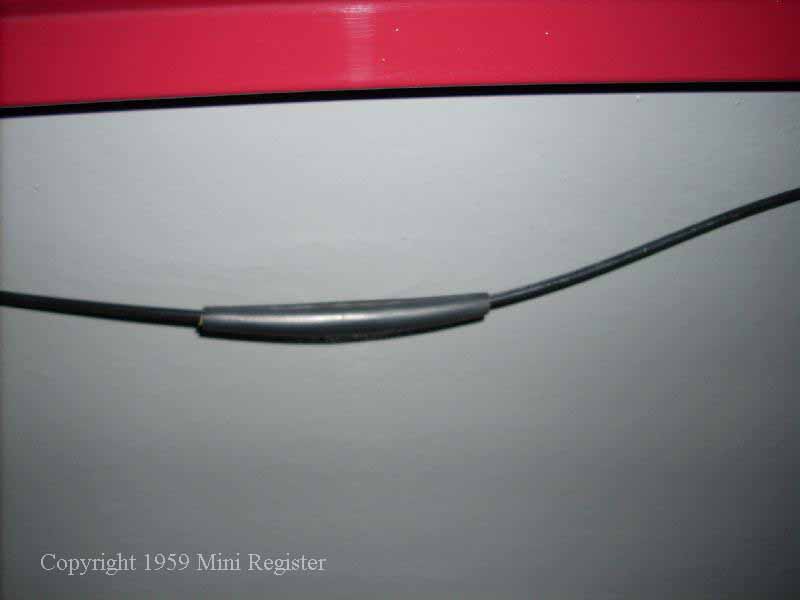

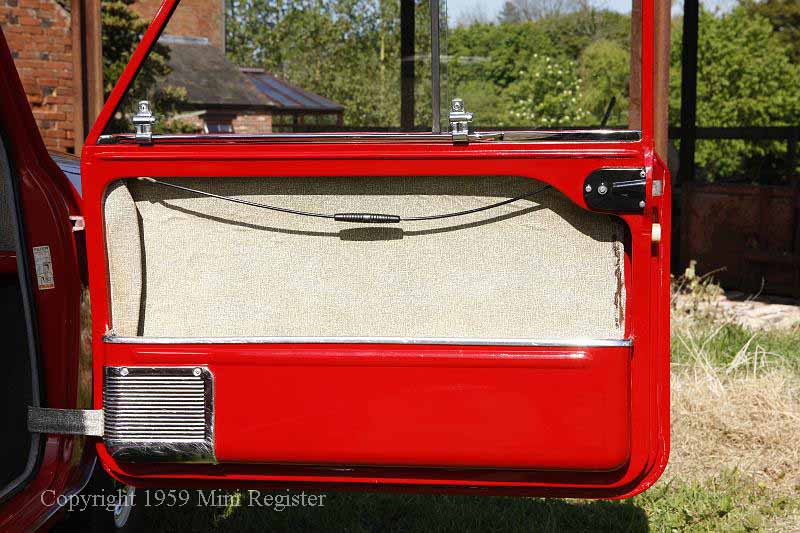

| All 1959 cars, Austin & Morris should have this style smooth sliding handle door string pull. Part number 14A8664 up to November 1960 for Longbridge (Austin) and December (Morris and some Austin)1961 for Cowley. |

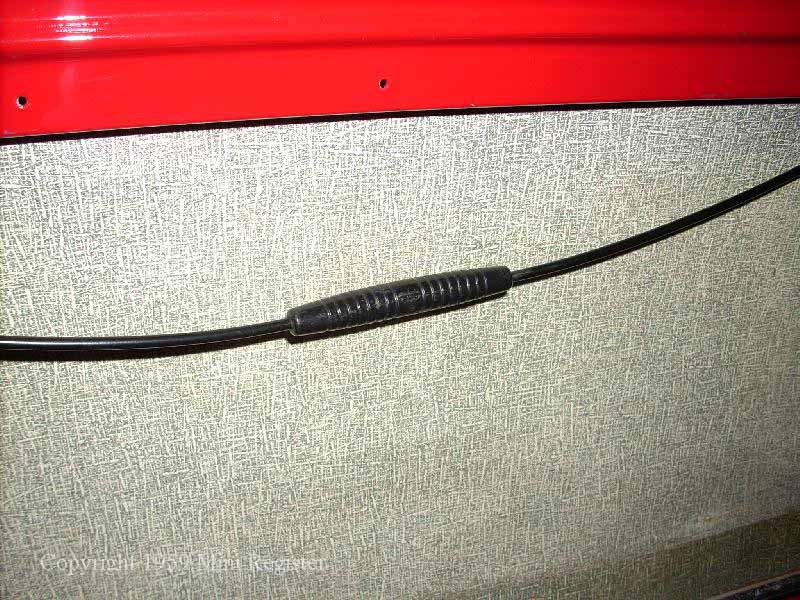

Later style door pull with ribbed grip and fixed to string, part number 24A664. |
|
|
|
| All Morris 59 cars have body coloured interior door locks with the passenger interior lock as a round button. Austin’s had a similar lock but they were painted black. |
Later style with flat interior lock button. |
|
|
|

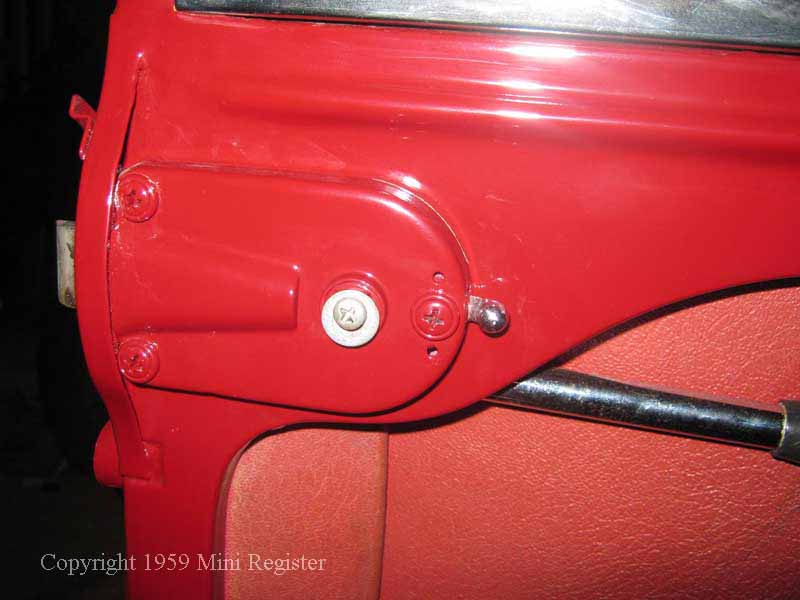

| 1959 interior window catches are chrome metal and have no lower locating dowel for the one hole glass. |

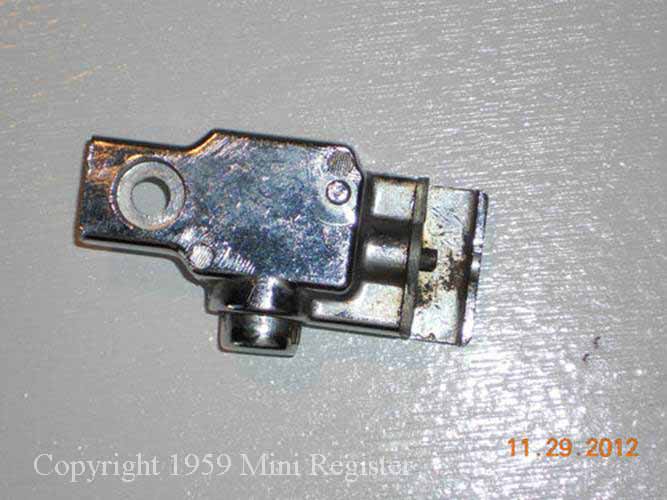

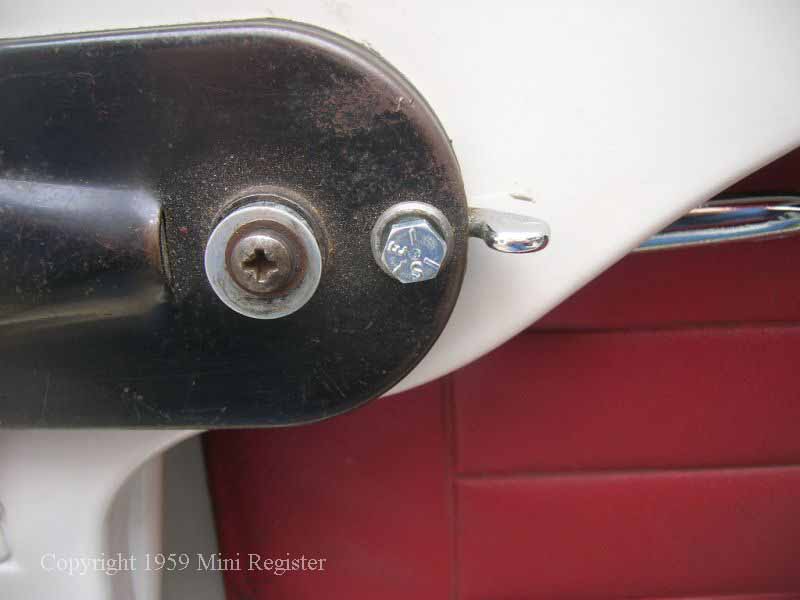

A slightly different style of one hole catch, still correct for 59. |
|
|
|

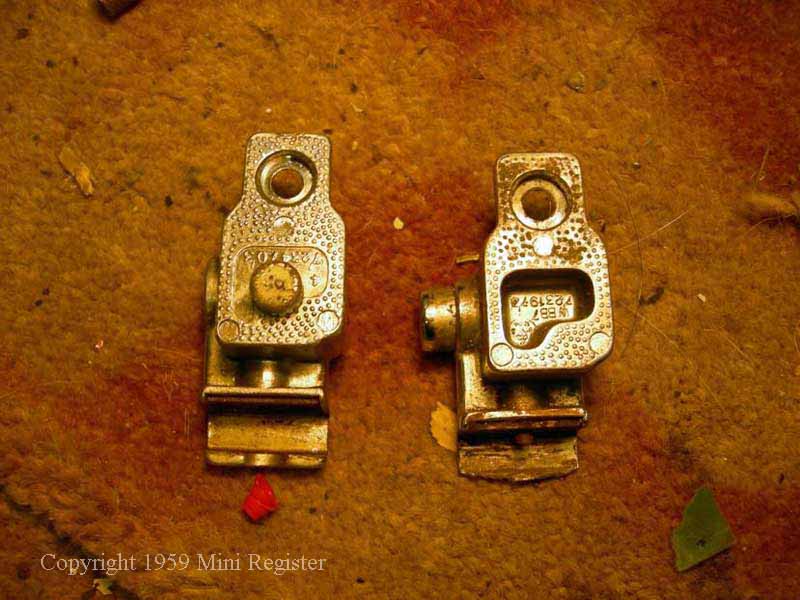

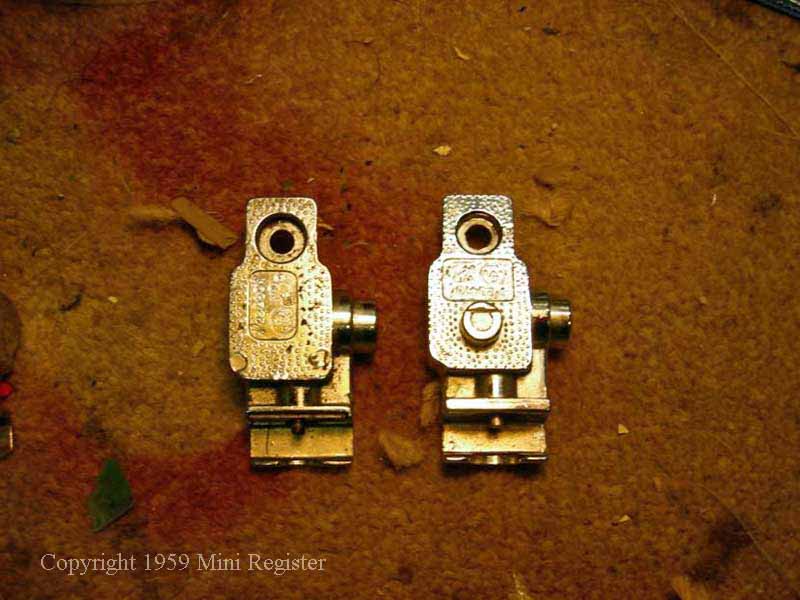

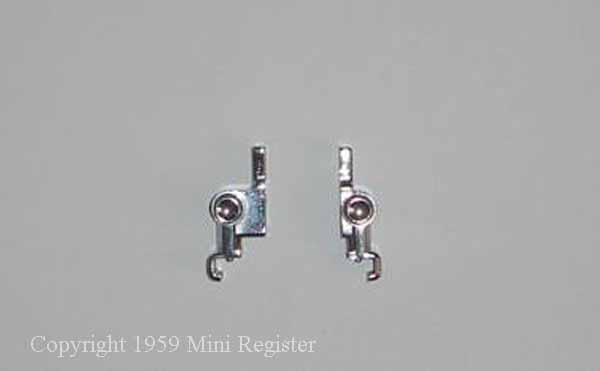

| Two photographs showing the two types of chrome catch, two hole and 1959 correct one hole on the right. Check the catches you buy are not modified 2 hole catches. |
|
|
|

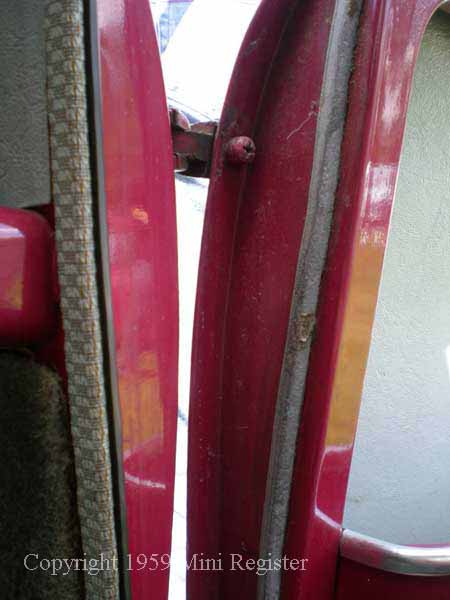

| A weather strip was present on all cars up to 30823 when the new style door was introduced in May 1960. |

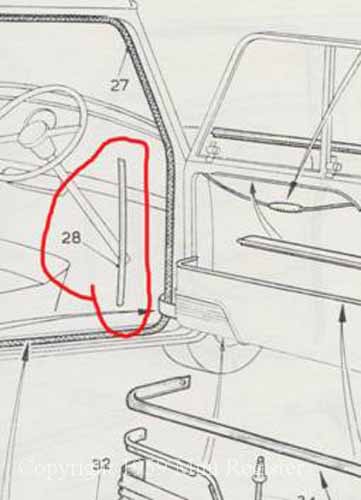

Weather-strip (28), glued on to prevent water from the drainage channels to enter the car via the door seal, from starts until 30823. |
|
|
|

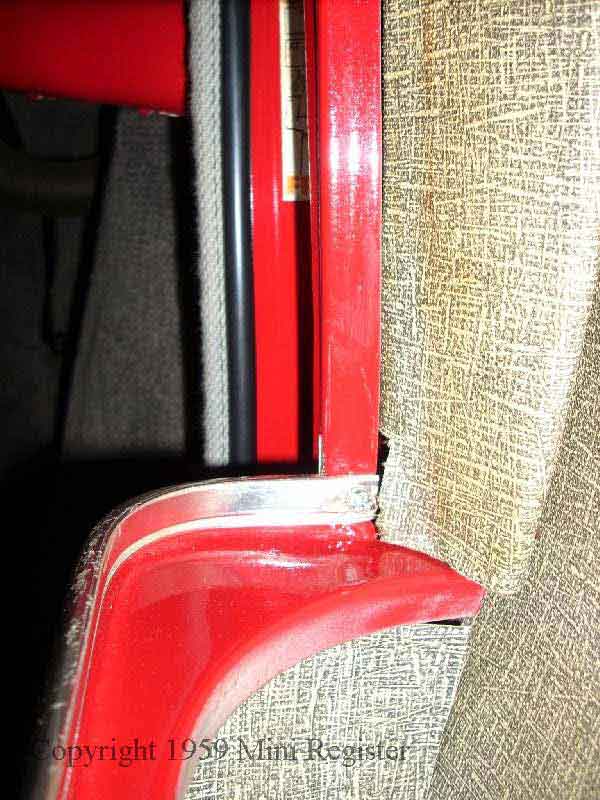

| Moulding on door-pocket is 1/2″longer in the ends and mounted with two small cross headed screws |

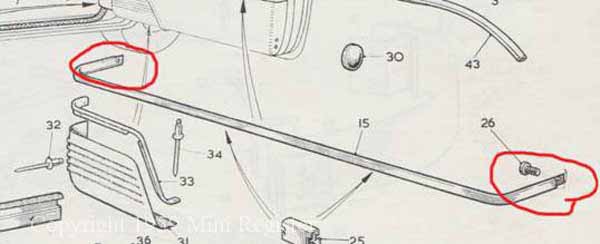

Parts book extract showing the longer moulding that covers the door frame. |
|
